Description

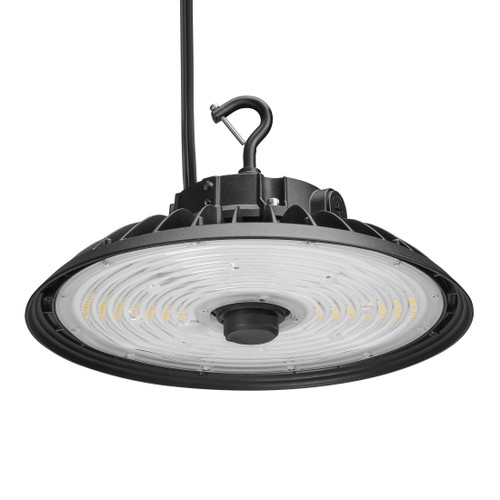

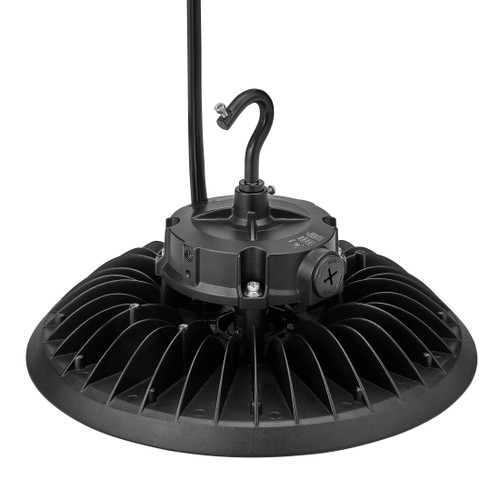

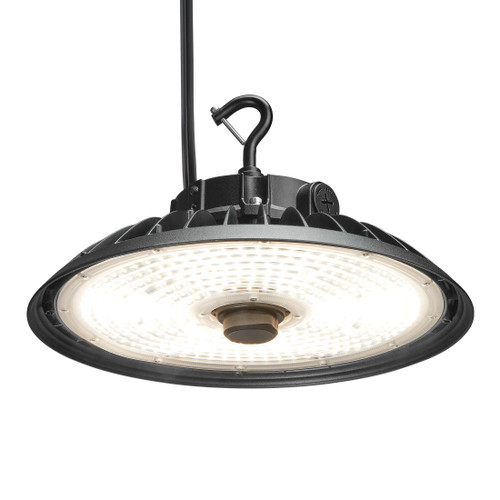

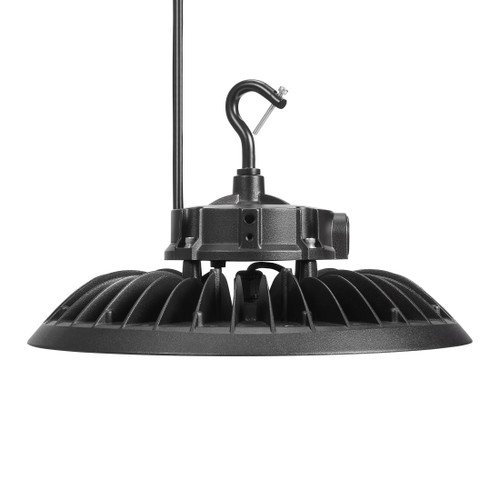

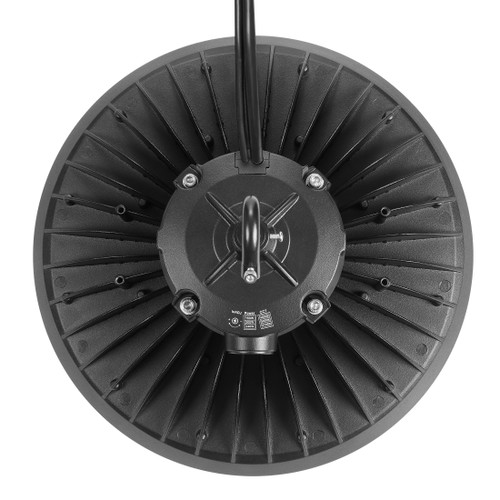

Maxxima’s 12 inch LED High Bay Light Fixture is delivers powerful, adaptable illumination for large spaces with high ceilings. Producing up to 40,800 lumens of bright, tunable white light, this fixture offers selectable color temperatures of 4000K, 5000K, and 5700K to suit a wide range of commercial and industrial environments. With an 80 CRI and a focused 90 degree beam spread, it delivers clear, accurate light exactly where it is needed. Designed for flexibility and energy control, this high bay UFO fixture features selectable wattage settings of 150W, 200W, or 240W, easily adjusted using a screwdriver. A detachable motion sensor is included and can be installed or omitted based on your application. The sensor offers a detection range of up to 40 feet in mounting height and a 52 foot diameter. After 5 minutes of no motion, the fixture automatically dims to 30 percent output, and after 30 minutes of no motion, the light turns off completely to help reduce energy consumption. Built with durability and ease of installation in mind, this black industrial barn style UFO light includes a 12 inch cable for hardwiring and a hook for straightforward mounting. Its rugged cast aluminum housing and wet location rating make it suitable for both indoor and outdoor use. Ideal applications include warehouses, factories, garages, gyms, workshops, supermarkets, and other large commercial or industrial spaces. This fixture supports 0 to 10V dimming when paired with a compatible dimmer, allowing precise control over brightness levels. Rated for up to 54,000 hours of operation, UL certified, and backed by a 3 year warranty.
Product Specifications
| Model | MCL-240103 |
|---|---|
| Manufacturer | Maxxima |
| Light Type | LED Ceiling Fixture |
| Color | Black |
| Shape | Round |
| Qty Pack Size | Single Pack |
| Case Pack Qty | 2 |
| Watts | 240 |
| Watts Equivalent | 600 |
| Brightness | 40,800 Lumens |
| CRI | 80 |
| Lifetime Hours | 54,000 |
| Dimmable | Yes |
| Beam Spread | 90° |
| UL Listed | Yes |
| Suitable For | Wet Locations |
| Depth | 4.6" |
| Diameter | 12.1" |
| Weight | 5.1 lbs |
| Voltage | 120-277V AC |
| Warranty | 3 Years |
| Finish | Matte |
| Lens Type | Clear Lens |
Additional Information
- Hardwired applications only. No plug needed
- 120-277 VAC
- 3 CCT Select 4000K/5000K/5700K

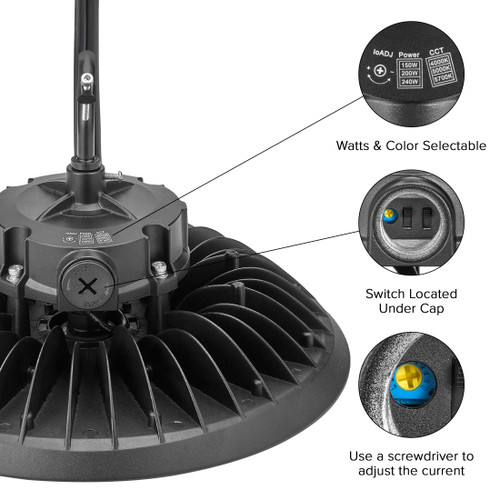

- Selectable wattage: 150W/200W/240W

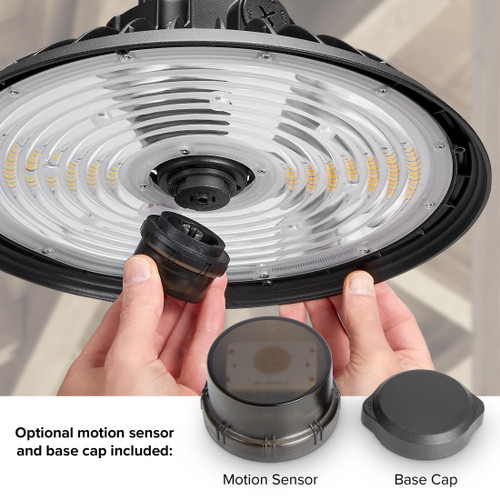

- Motion sensor detection range up to 40 ft mounting height with a 52 ft diameter
- Sensor dims to 30% after 5 minutes of no motion and turns off after 30 minutes for energy savings
- IP65 rated for outdoor water-resistant use
- Wire length from fixture to J-Box for hardwiring: 12"
- UL listed
- Operating temperature: -4°F to 104°F
- Hanging clip included
- UPC: 755183190771
