Description

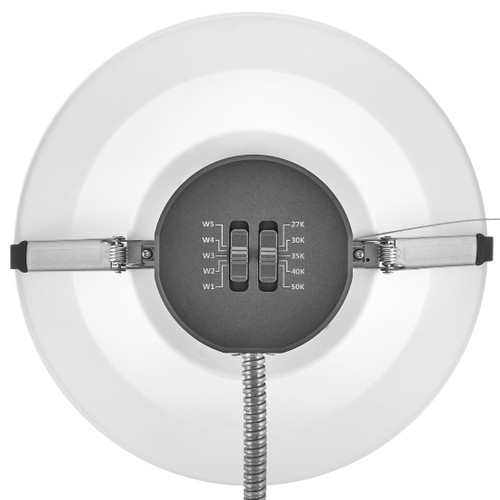

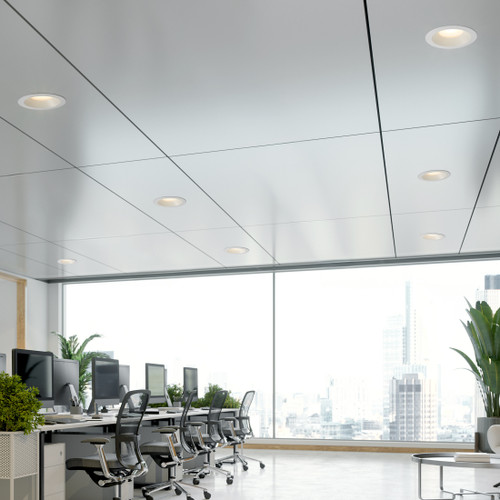

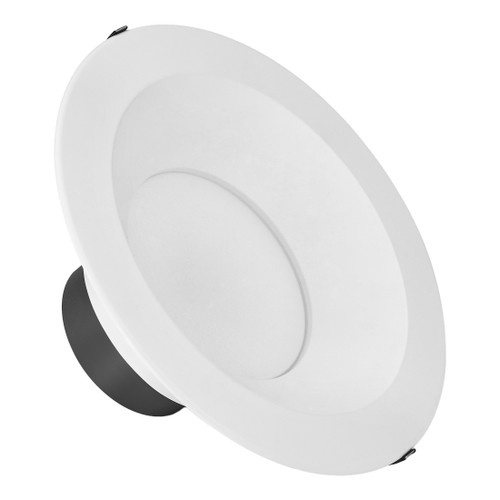

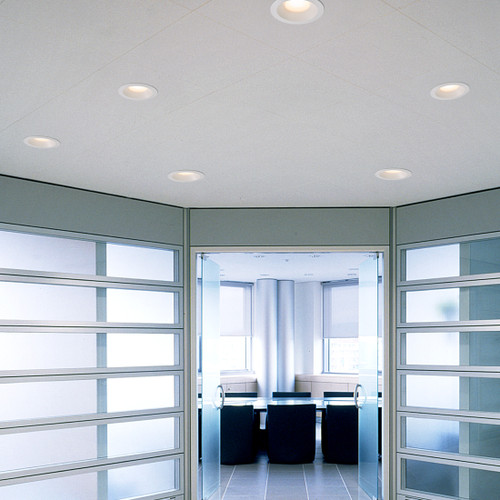

This 10-inch 120-277 VAC recessed commercial LED downlight is ideal for a wide range of commercial recessed lighting applications. Featuring a color temperature selector on the rear of the light, you can easily set your light output color. Selectable light color temperatures for this LED fixture includes 2700K soft white, 3000K warm white, 3500K bright white, 4000K neutral white and 5000K daylight. Additionally, a second selector allows you to control variable wattage and lumens, providing you with the desired brightness to fit your installation. The 20-watt setting provides 2550 lumens of light output, 24-watt setting provides 2850 lumens, 28-watt setting provides 3200 lumens, 32-watt setting provides 3600 lumens and 38-watt setting provides 4150 lumens. This style of interior architectural lighting is commonly installed in office buildings, retail stores, hospitals and other facilities. They are dimmable, giving you the flexibility to control the light level in a particular space depending on how it is being used. This 10-inch LED commercial downlight can be dimmed when using a 0-10V dimmer. To provide additional safety, this light comes with a pre-attached safety cable, helping to securely fasten it and preventing the light from ever falling. This fixture is ETL listed and comes with a 3-year warranty.
Product Specifications
| Model | MRL-104005C |
|---|---|
| Manufacturer | Maxxima |
| Light Type | LED Downlight |
| Color | White |
| Downlight Type | Commercial |
| Shape | Round |
| Qty Pack Size | Single Pack |
| Case Pack Qty | 4 |
| Watts | 38 |
| Brightness | 4150 Lumens |
| CRI | 90 |
| Lifetime Hours | 50,000 |
| Dimmable | Yes |
| Dimming Type | 0-10V |
| ETL Listed | Yes |
| IC Rated | Yes |
| Suitable For | Wet Locations |
| Depth | 4.9" |
| Diameter | 11.4" |
| Weight | 1.9 lbs |
| Voltage | 120-277V AC |
| Warranty | 3 Years |
| Finish | Glossy |
Additional Information
- 5 CCT Select with switch (2700K/3000K/3500K/4000K/5000K)
- 5 Wattage Select - 20W - 2550 Lm / 24W - 2850 Lm / 28W - 3200 Lm / 32W 3600 Lm / 38W - 4150 LM
- Input Voltage: 120-277 VAC

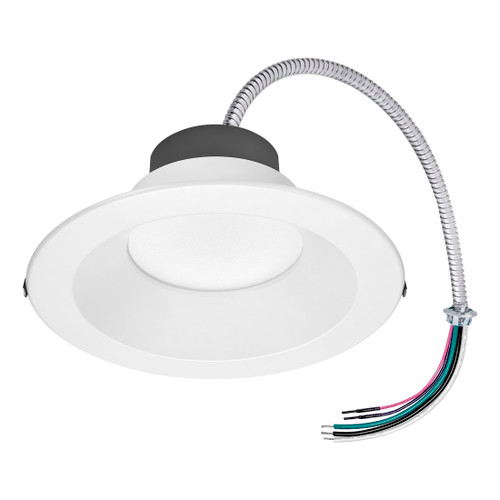

- Pre-Wired Whip (Flexible Metal Conduit) to Input Power & Optional Dimming Control
- Wire Nuts & Tension Spring Clips Included for Simple Installation

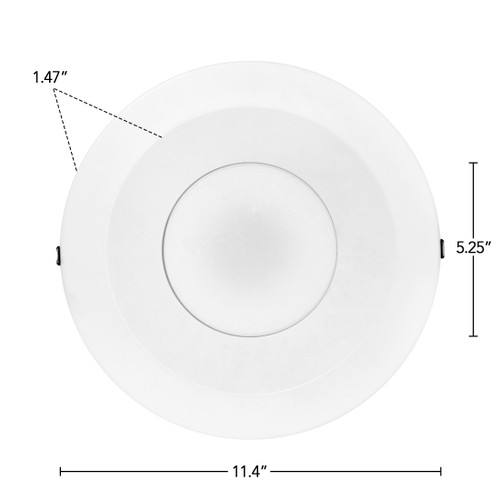

- Lamp Dimensions: 11.4" Diameter x 4.9" Depth - Trim Width 1.47”
- Whip Length: 27”
- Safety Cable: 19.75”
- 0-10V Dimming
- Dimming range 10%-100%
- Operating temperature: -13°F - 104°F
- Suitable for Wet Locations
- IC Rated
- CRI Rating 90
