Description

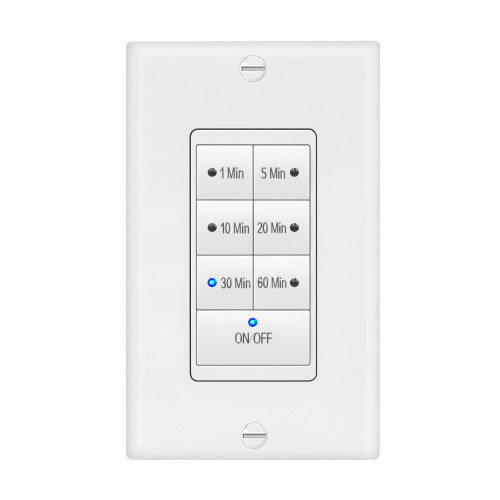

This 7 Button Timer control replaces a conventional wall switch for energy saving and convenience. You manually turn the lights or fan on and the lights or fan turn off automatically after a pre-set period of time ranging from 1-60 minutes. This in-wall countdown switch features 7 buttons for on/off, 1 min, 5 mins, 10 mins, 20 mins, 30 mins and 60 mins. The indicator light on the button that was pressed will stay on. Ten seconds before the time expires, the indicator light will flash as an indicator that it is about to time out. If you need the output to stay on longer, you can press the time button again, and the output can run for the same length of time again. After the output turns off, the indicator light on the ON/OFF button will turn off. You can also set this switch to constant on mode by holding the ON/OFF button for more than 5 seconds. During constant on mode, all LED indicators are unlit. The output will now stay on until you turn it off manually by simply pressing the ON/OFF button once. This device is made for indoor use only and includes the wall plate. It’s perfect for bathroom exhaust fans as well as heaters, sprinklers, laundry rooms and lights. More details are available in the included instruction manual. This item is UL Listed and backed by Maxxima for 1 year.
Product Specifications
| Model | MEW-PT1875 |
|---|---|
| Manufacturer | Maxxima |
| Color | White |
| Qty Pack Size | Single Pack |
| Case Pack Qty | 80 |
| UL Listed | Yes |
| Width | 1.7" |
| Height | 4" |
| Depth | 1.5" |
| Weight | .19 lbs |
| Voltage | 125V AC |
| Warranty | 1 Year |
Additional Information

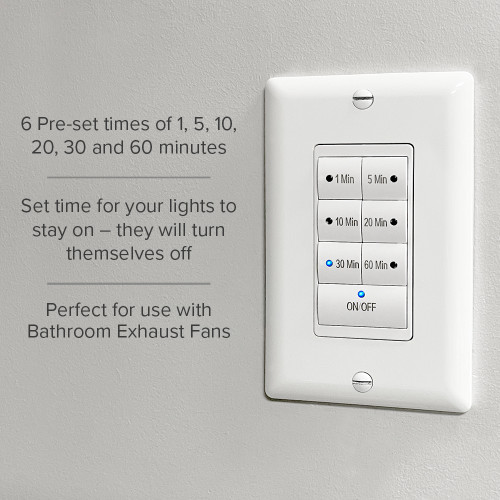

- 6 Pre-set times of 1, 5, 10, 20, 30, and 60 minutes
- Install this switch, and set your lights to stay on for a predetermined period of time, knowing that no matter what, they will turn themselves off.
- Can also be set in Constant "on" mode.
- Perfect for Closets, Hallways, Garages, Laundry Rooms and Bathroom Exhaust Fans.
- Never forget to turn off your lights again.
- The timer indicator LED will flash for the last 10 seconds of the selected time.
- Voltage - 125VAC, 60Hz, Single Pole Circuit Load
- Incandescent 0-1875 Watt
- Fluorescent 1250VA
- Fan Motor 1/2HP
- Compatible with LED, CFL, incandescent lamps, electronics and magnetic low voltage ballasts, electronics and magnetic ballasts and fans.
- Wall Plate and Mounting Screws included
- Neutral wire required
